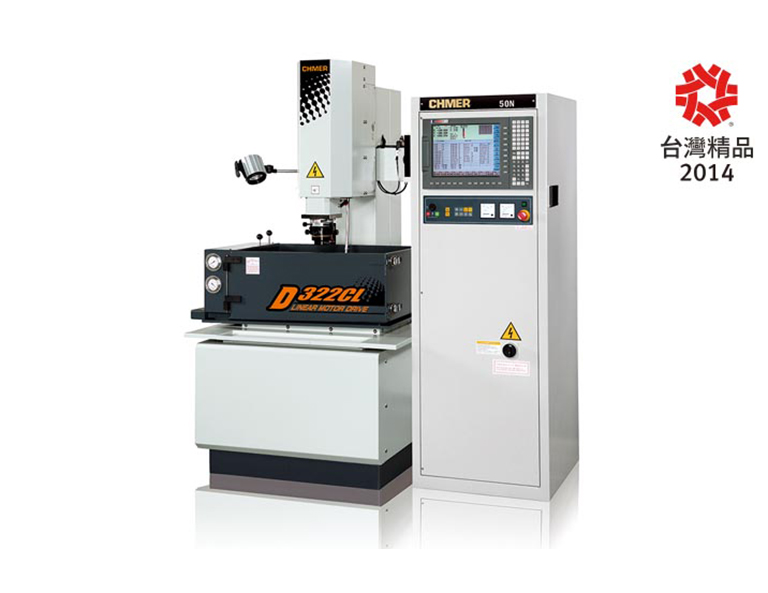

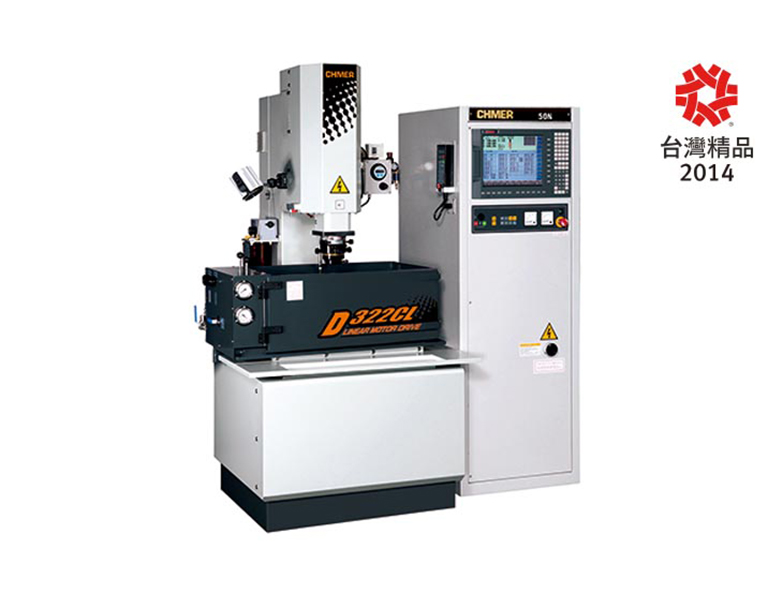

D322CL

Die Sinker EDM

1.IN-HOUSE LINEAR MOTOR DRIVE SYSTEM

2.HIGH MACHINING SPEED

3.HIGH RESPONSE

4.LOW FRICTION OF AXIS MOVEMENT

5.MEDIUM-LOW CURRENT IMPULSE

6.RAPID ENERGY CIRCUIT

Technical data

X, Y, Z Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

300x200x250mm

720x450x190mm

300kg

1040X1470X200mm

1400kg

Download PDF Inquiry CHMER

Specification

Model	Unit	D322CL
Work table size (WxD)	mm	500X300
Work tank size (WxDxH)	mm	770x500x300
Work Piece size (WxDxH)	mm	720x450x190
Table travel (X,Y)	mm	300x200
Table travel (Z)	mm	250
X,Y,Z Axis drive	mm	X,Y AXIS BY AC SERVO MOTOR,Z AXIS BY LINEAR MOTOR
Distance from ram platen to work table	mm	250-500
Max. electrode weight	kg	20
Max. work-piece weight	kg	300
Outside dimensions (WxDxH)	mm	1040X1470X2000
Weight of machine unit	kg	1400
Pneumatic requirement	kgf/cm2	6
For dielectric tank	-	D434

Power Supplier Unit

Model	Unit	50N	75N
Max. machining current	A	50	75
Max. power input	KVA	4	5
Electrode wear rate	%	0.2	0.2
Best surface roughness	μm/Ra	0.25	0.25
Outside dimensions (WxDxH)	mm	620x850x1860	620x850x1860
Weight	kg	180	220

Dielectric
