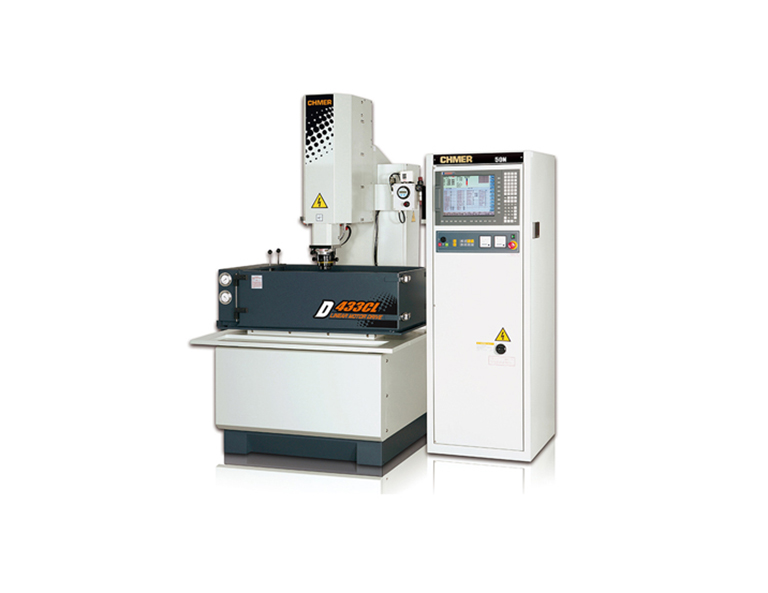

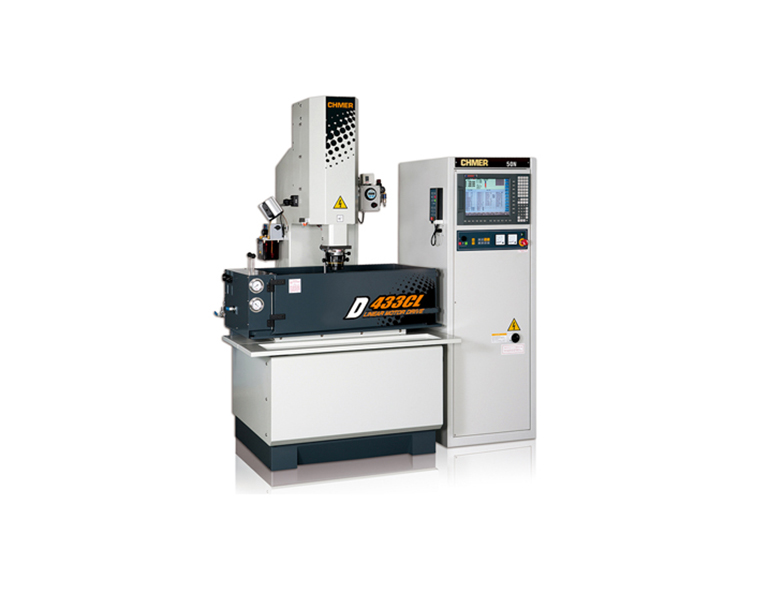

D433CL

Die Sinker EDM

1.IN-HOUSE LINEAR MOTOR DRIVE SYSTEM

2.HIGH MACHINING SPEED

3.HIGH RESPONSE

4.LOW FRICTION OF AXIS MOVEMENT

5.MEDIUM-LOW CURRENT IMPULSE

6.RAPID ENERGY CIRCUIT

Technical data

X, Y, Z Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

400x300x300mm

950x560x250mm

350kg

1260X1600X2175mm

1600kg

Download PDF Inquiry CHMER

Specification

Model	Unit	D433CL
Work table size (WxD)	mm	650X400
Work tank size (WxDxH)	mm	1000X610X300
Work Piece size (WxDxH)	mm	950X560X250
Table travel (X,Y)	mm	400X300
Table travel (Z)	mm	300
X,Y,Z Axis drive	mm	X,Y AXIS BY AC SERVO MOTOR,Z AXIS BY LINEAR MOTOR
Distance from ram platen to work table	mm	250-550
Max. electrode weight	kg	30
Max. work-piece weight	kg	350
Outside dimensions (WxDxH)	mm	1260X1600X2175
Weight of machine unit	kg	1600
Pneumatic requirement	kgf/cm2	6
For dielectric tank	-	D434

Power Supplier Unit

Model	Unit	50N	75N	125N	150N
Max. machining current	A	50	75	125	150
Max. power input	KVA	4	5	9	10
Electrode wear rate	%	0.2	0.2	0.2	0.2
Best surface roughness	μm/Ra	0.25	0.25	0.25	0.25
Outside dimensions (WxDxH)	mm	620x850x1860	620x850x1860	620X850X1860+450X470X1650	620X850X1860+450X470X1650
Weight	kg	180	220	400	440

Dielectric
